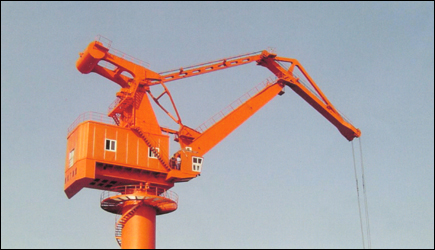

Fixed Crane
| |
|
|
|
|
 |
 |
|
|
|
| |
HGQ model stationary type omnidistance luffing crane is suitable for small and media size of fresh water ports, storage yard, and stacks which handle the operation for loading and unloading cargoes in packages, chandlery and bulk cargos.
This model is of single girdle truss type with wire rope or single rack luffing. It is facilitated with compensating double pulley system, which enables the cargo to move horizontally. The model is capable of omnidistance load and luffing and slewing at any angle with load. It can be operated with stability, reliability, high efficiency and safety.
This model is manufactured and installed based on the combination of our company standard HGQ Rotary Bearing Fixed Cranes with GB3811-83 Criterion for Design of Cranes and GB6067-85 Safety Rules on Cranes.
It can be fitted with lifting hook and grabs
|
|
| |
|
Lifting capacityt |
3 |
5 |
8 |
10 |
16 |
20 |
25 |
30 |
35 |
40 |
|
Biggest work scopem |
20 |
25 |
25 |
25 |
30 |
30 |
25 |
20 |
20 |
20 |
Biggest lifting
altitude
(m) |
In area of bearing |
15 |
18 |
18 |
18 |
22 |
22 |
22 |
22 |
20 |
20 |
|
Under area of bearing |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
Grab
work |
Lifting
speed
(m/min) |
Steel wire amplitude |
36 |
36 |
36 |
36 |
36 |
30 |
30 |
30 |
30 |
30 |
|
Single rack amplitude |
50 |
50 |
50 |
42 |
42 |
42 |
40 |
40 |
40 |
40 |
Amplitude
speed
(m/min) |
Steel wire amplitude |
22 |
22 |
22 |
20 |
20 |
20 |
20 |
18 |
18 |
18 |
|
Single rack amplitude |
40 |
40 |
40 |
35 |
35 |
35 |
35 |
30 |
30 |
30 |
|
Velocity of whirl(r/min) |
1.58 |
1.58 |
1.58 |
1.58 |
1.58 |
1.58 |
1.58 |
1.58 |
1.58 |
1.58 |
Installed capacity
(KW) |
Steel wire amplitude |
～45 |
～86 |
～120 |
～154 |
～210 |
～247 |
～290 |
～330 |
～350 |
～420 |
|
Single rack amplitude |
～63 |
～100 |
～140 |
～194 |
～240 |
～287 |
～330 |
～400 |
～490 |
～600 |
Lift
hook
work |
Lifting speed(m/min) |
22 |
22 |
22 |
20 |
20 |
20 |
20 |
18 |
18 |
18 |
|
Amplitude speed(m/min) |
18 |
18 |
18 |
18 |
16 |
16 |
16 |
12 |
12 |
12 |
|
elocity of
whirl(r/min) |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
|
Installed capacity(KW) |
～26 |
～44 |
～56 |
～67 |
～92 |
～127 |
～149 |
～157 |
～199 |
～231 |
|
|
| |
|
|
|
QB
Type Ship Fixed Crane |
|
 |
|
|
| |
QB model stationary marine crane is installed on the engineering vessels which berth at offshore and fresh water. The crane mainly handles the operations such as loading and unloading the bulk goods and cleaning for river path sludge etc. It is designed for the special working environment which has been corroded by fog, storm and maritime climate.
All of the equipments manufactured by our company have either been awarded Certificate for Marine Product by China Classification Society Shang Hai Branch, or ZC Certificate for Marine Product by Wu Xi Marine Board. They are safe, reliable and suitable for working with the grabs with heeling of five degrees and longitudinal trim of two degrees.
|
|
| |
|
Lifting capacity(t) |
3 |
5 |
8 |
10 |
16 |
20 |
|
Biggest work scope(m) |
18 |
25 |
25 |
25 |
30 |
30 |
|
Smallest work scope(m) |
6 |
8 |
8 |
8 |
9 |
9 |
|
Lifting speed(m/min) |
36 |
|
Amplitude speed(m/min) |
20 |
|
Velocity of whirl(r/min)B |
1.5 |
|
Hoist crane tail radius(m) |
3.6 |
4.0 |
4.6 |
5.0 |
5.5 |
5.8 |
|
Control mode |
Electrically operated |
|
Power |
380V 50Hz
Three four-wire systems |
|
|
| |
|
|
| This fixed crane is
designed by single boom, using wire
rope amplitude can be luffing with
load for 360-degree rotation, can
make decisions within the work of
lifting, amplitude, rotation of the
individual or joint action; as Vice
lifting, amplitude, rotation of the
individual or joint action. The door
in Block 4 legs of the pier
foundation bolt connection. Lifting,
amplitude, rotating both AC
frequency conversion stepless speed
regulation, electric control part
adopts PLC control. In order to
ensure safe and reliable crane work,
installation of advanced safety
protection device and pointing
device. The machine structure of
sufficient strength, rigidity and
stability, and anti-fatigue; it is a
body rational layout, advanced
technology, superior performance,
transmission smooth, safe, reliable,
low noise, easy operation and
flexible, accurate, and convenient
maintenance characteristics of the
mature product. |
|
 |
|
120t
Fixed Crane Performance Parameters |
|
Lifting capacity |
Lifting weight |
t |
Main
hook |
Aux
hook |
|
120 |
20 |
|
Amplitue |
m |
Rmax=15.5,
Rmin=10.5 |
Rmax=22.68,Rmin=12.15 |
|
Lifting height |
Above
basis |
m |
15(R=20m) |
20(R=22.68m) |
|
Below
basis |
m |
18 |
18 |
|
Mechanism speed |
Lifting |
m/min |
0.3～
3 m/min
（fully
load） |
1.4～
14 m/min
（fully
load） |
|
0.3～
6 m/min
Underloading |
1.4～
28 m/min
Underloading |
|
Luffing |
m/min |
0.3～
3 m/min
Loading |
0.3～4.8
m/min
Idling |
|
Slewing |
r/min |
0～0.35
\F(1,3) r/min |
|
Mechanism working level |
|
A5 |
|
Height of portal
clearance |
m´m |
10.5
´
16 |
|
Slewing ring gear |
m |
5 |
|
Tail
radius of gyration |
|
131.40.4000 |
|
Installed capacity |
m |
≤9 |
|
Power
supply |
KW |
115 |
|
Control mode |
|
|
|
Power
source |
|
PLC |
|
Power
source |
|
AC
380V 50Hz |
|
Main
hook：15.5m～20m
can be used for other
hanging set，Maximum
amplitude 20m |
|
| |
|
100t Fixed crane
Technical Specifications Table |
|
Item |
Content |
|
Type |
HGQ10035 Fixed Crane |
|
Lifting capacity(t/m) |
Hook |
100t |
50t |
15t
（Aux
hook） |
|
Working Range (m) |
Max |
25m |
35m |
31m |
|
Min |
13m |
11.6m |
|
Lifting height (m) |
Above
ground |
30m |
|
Below
ground |
12m |
|
Mechanism speed |
Lifting |
0.25~12m/min |
1.5
~25m/min |
|
Luffing |
1.5~15m/min |
|
Slewing |
0.8r/min |
|
Mechanism working level |
A5 |
|
Installed capacity |
9m |
|
Control mode |
Center collecting ring |
|
Power
source |
Current
380V，50HZ，Three-phase
five-wire |
|
| |
|
|
|
 |
 | |
|
|
|
| |
